Aktuelles
Die wichtigsten News aus der Halbleiterbranche, das Aktuellste über innovative Technologien und relevante Termine für Messen in Ihrer Nähe. Erfahren Sie all Dies zuerst und bleiben Sie auf dem Laufenden.
Unsere Messe Highlights auf der PCIM 2018
WE CONNECT HV SMU TO YOUR TEST SETUP

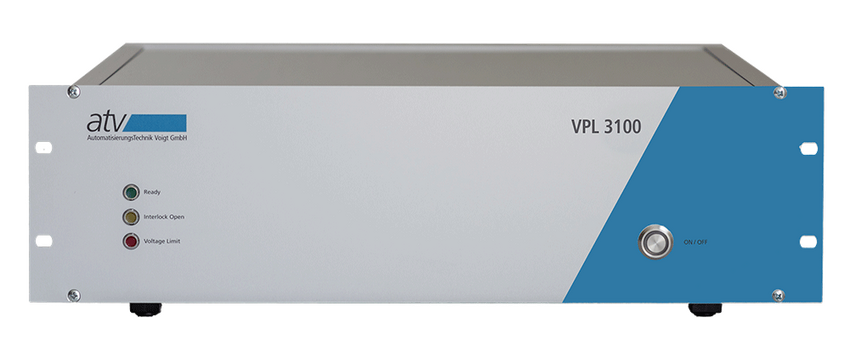

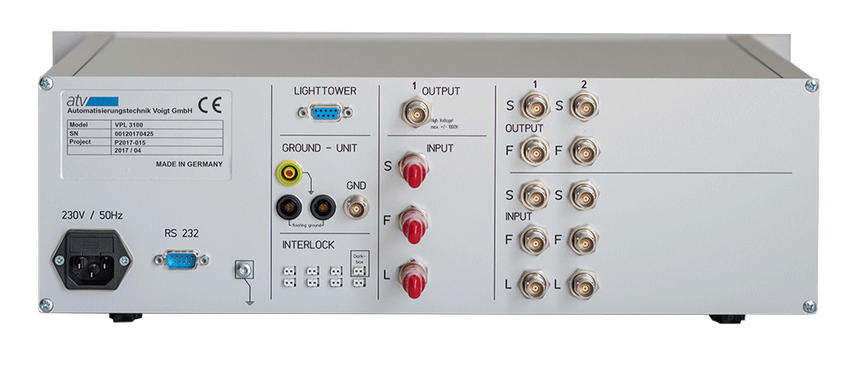

VPL 3100 - High voltage protection & limiter unit
- Safe limitation to 1.1 kV
- Inputs for up to two 3 kV Keithley SMU
- Overvoltage protection for 200 V SMU
- Adaptation from Keithley high voltage cables (3 kV) to standard HV-triax (1 kV)
- Keithley TSP (Test Script Processor) driver
WE COMBINE 100 A AND 3000 V IN ONE SETUP

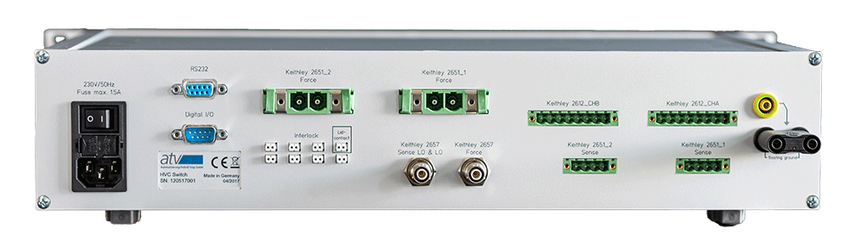

HVC Switch - Power curve tracer
- For Keithley HC- and HV-SMU
- Built-in high voltage protection for gate control
- HV triax for leakage measurement
- Package- and wafer-level
- Controlled HV & HC mode selection
WE ENABLE 1000 W ON WAFER LEVEL

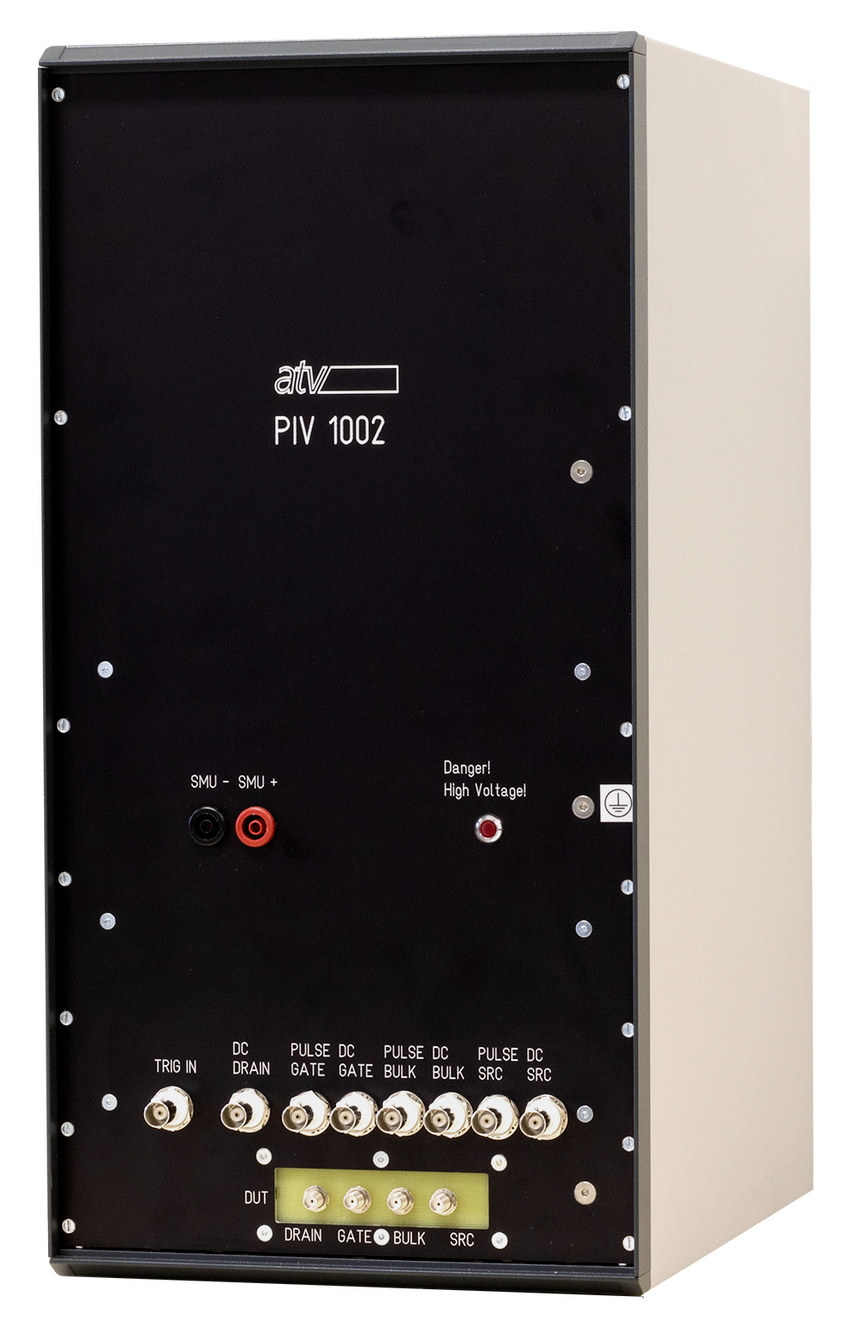

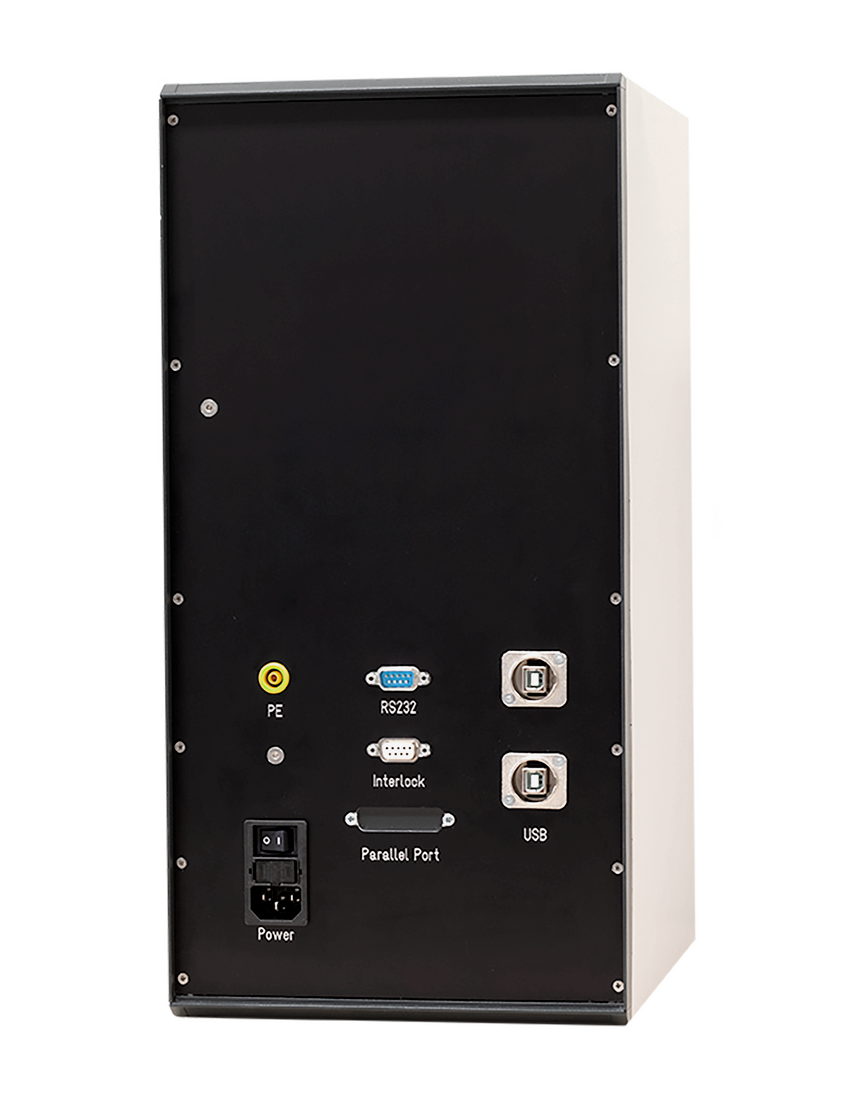

PIV 1002 - for characterisation of high-voltage MOSFET
- Pulse width: 250 ns - 5 ms
- 2-4 terminal devices
- IC-CAP modeling driver
- Reliability test / pulsed hot carrier test
- Overcurrent protection (probe tip protection
WE PROVIDE ULTRA FAST DYNAMIC RDS(ON) TEST

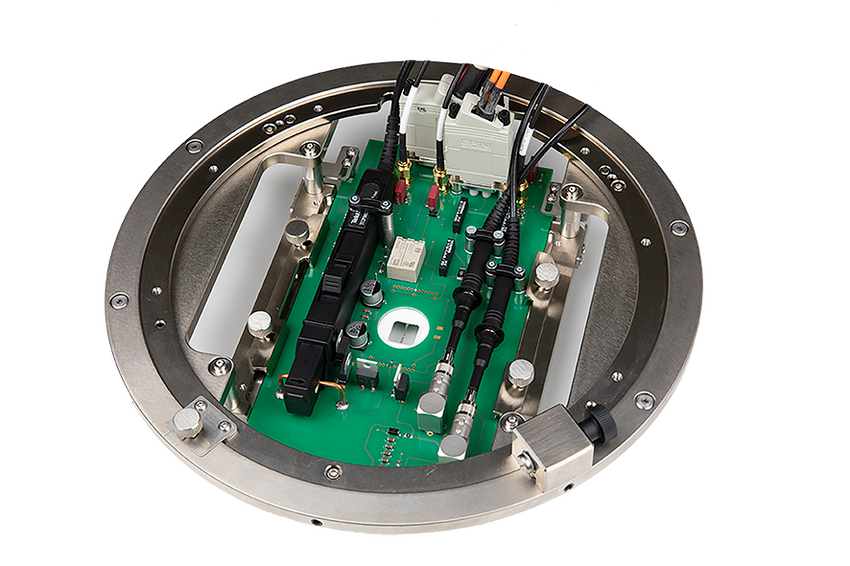

Characterisation system for GaN-devices
- Off-state 1 kV
- On-state 120 A
- 100 ns sampling time resolution
- Integrated wafer test solution
- Active probe card
