TS150-HP & TS200-HP

MPI High Power Manual Probe Systems for accurate and reliable High Power measurements

Facts & Benefits
Downloads

Dedicated designed for High Voltage and High Current application
Ergonomic Design and Safety
Upgradability

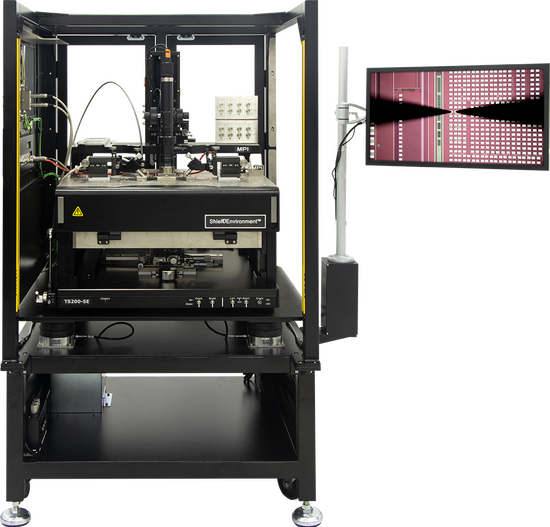

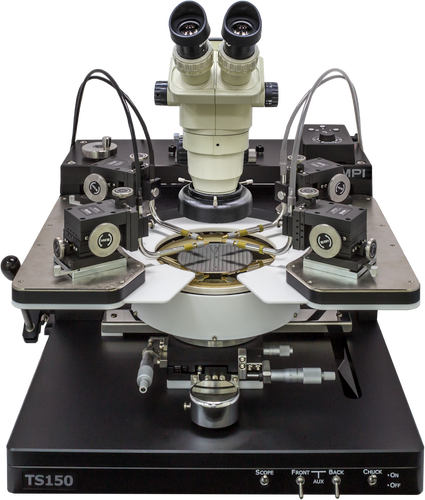

MPI High-Power device characterization systems are specifically designed for on-wafer high power device testing. MPI TS150-HP and TS200-HP probe systems provide a complete 150 mm and 200 mm on-wafer solution. They are engineered to achieve low contact resistance measurements of power semiconductor under wide range of temperatures.

Air-Bearing Stage

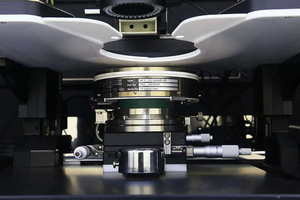

The MPI air-bearing stage design, with simple single-handed puck control, provides unsurpassed convenience of operation for fast XY navigation and quick wafer loading without compromising accurate and fine positioning capability with the additional fine and accurate 25x25mm XY-Theta micrometer movement.

Instruments Integration

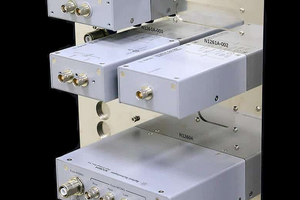

TS150-HP/TS200-HP can be configured with variety of instrument connection packages, which consists of necessary high voltage / high current probes and cabling accessories for optimal connection to the test instruments such as Keysight B1505 (3 kV or 10 kV) or Keithley 2600-PCT-XB, including integration of 8020 High Power Interface Panel.

Safe and Accurate

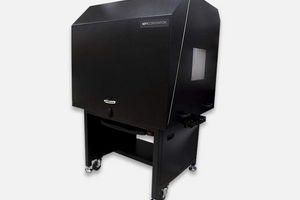

The standard manual High Power probe systems are configured with a DarkBox providing an interlock for safety and EMI-shielding capability in order to insure low-noise, accurate , and safety measurements.

High Voltage, High Current and Ultra High Power Probes

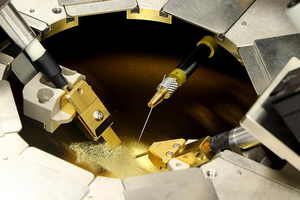

MPI high power probing solutions include dedicated High Voltage (HVP), High Current (HCP) and Ultra High Power (UHP) probes. MPI’s high voltage probes are capable of low leakage current measurements during high voltage tests up to 3kV triaxial or 5 & 10 kV in coaxial set-ups.
The HCP are using MPI propriety multi-contact tips for reduced contact resistance for ultra-high current measurements up to 600A (pulsed).
The UHP probes are combining both capabilities and eliminating the need to change probes for high voltage and current applications.

10 kV Coaxial or 3 kV Triaxial Ambient Chucks

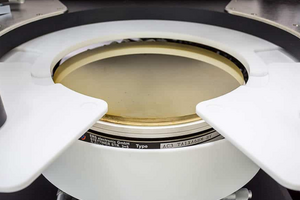

Chuck options include MPI’s 10 kV coaxial or 3 kV triaxial ambient chucks or various ERS thermal chucks to support temperature measurement from -60°C and up to 300 °C. The thermal touch controller is designed to be mounted on the prober itself for quick and convenient operation.
A chuck top tray, with electrical connection for biasing, is an easy add-on for any high power chucks at ambient temperature. The tray is designed to retain Fluorinert™ liquid for a cost effective anti-arcing solution.
*Fluorinert is a trademark of 3M Company, USA
