TS200-SE

MPI TS200-SE Probe System

Downloads

The MPI TS200-ShielDEnvironment™ (TS200-SE) is designed to ensure advanced EMI/RFI/light-tight shielding, ultra-low noise, low leakage measurement capabilities in a temperature range from -60 to +300°C.

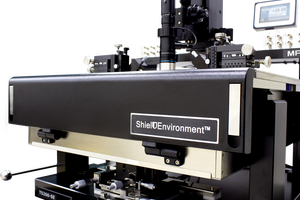

ShielDEnvironment™

MPI ShielDEnvironment™ is a high performance local environmental chamber providing excellent EMI- and light-tight shielded test environment for ultra-low noise, low capacitance measurements.

Unique Upgrade Path

The modular design of theTS200-SE modular creates a unique upgrade path. All TS200-SE probing accessories, such as thermal chucks, microscope and positioners, can be upgraded or reconfigured to variety of application requirements covering tool lifespan for increasingly low cost of ownership.

The MPI TS200-SE probe systems with ShielDEnvironment™ provides maximum EMI shielding and allows for low noise device on-wafer measurements for wide verity of applications such as Device Characterization and Modeling, RF/Microwave, Wafer Level Reliability, Failure Analysis, Design Validation, and High Power.

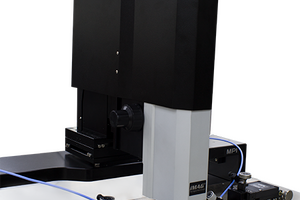

Various Optic Options

MPI Optics are available with a choice between a single tube MPI SuperZoom™ SZ10, the MegaZoom™ MZ12 with up to 12x optical zoom and more than 42 mm working distance or EeyZoom™ EZ10 – the 10x optical zoom optic with ergonomic 20x eyepieces, 90 mm working distance and down to 2 µm optical resolving power.

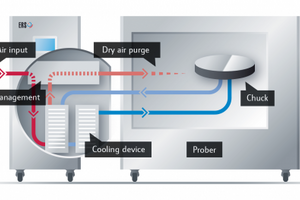

ERS Patented AC3 Cooling Technology Incorporated

These chucks incorporate the ERS patented AC3 cooling technology and its air management system to purge the MPI ShielDEnvironment™ directly from “already used” air – reducing dry air consumption up to 30 to 50% as compared to other systems on the market.

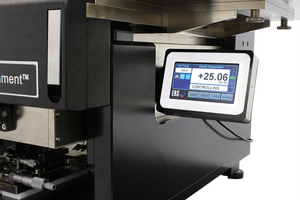

Thermal Control Integration

The wafer loading door is simply locked at any temperatures below 15°C – this unique feature makes TS200-SE the safest manual probe station in the market.
Furthermore, the thermal chuck can be operated by using the fully integrated touchscreen display, placed at convenient location in front of the operator for fast and operation and immediate feedback.

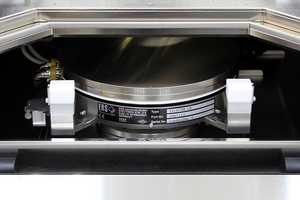

Various Chuck Options

The TS200-SE is available with various chuck options to meet different budgets and application requirements:

Ambient Chucks: Coaxial, Triaxial or RF with two auxiliary chucks built in ceramic material for accurate RF calibration
Various ERS AirCool Chucks from -60°C to 300°C

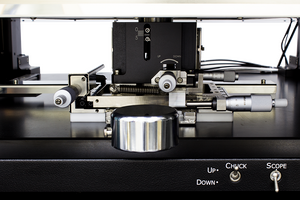

Unique Chuck Z Adjustment

TS200-SE incorporates in addition to the air bearing XY stage – 5 mm Z chuck adjustment in µm resolution for fine and accurate contact / over-travel control or probe cards drop tip correction.
A 1 mm scale indicator provides easy feedback to the operator. 20 mm pneumatic lift in addition offers easy and continent loading / unloading procedure.

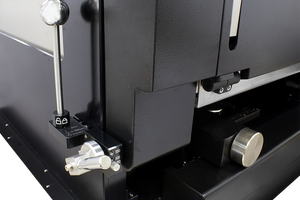

Unique Platen Lift with Probe Hover Control™

The repeatable (1 μm) platen lift design has three discrete positions for contact, separation (300 μm), and loading (3 mm). The lift includes a safety lock rotation utility which prevents accidental platform descent. These features offer unparalleled functionality and are standard offerings for the MPI TS200-SE manual probe system. Prevention of unexpected probe or wafer damage is critical to system design and provides intuitive control, accurate contact positioning, safe set-ups, and easy step and repeat functionality.

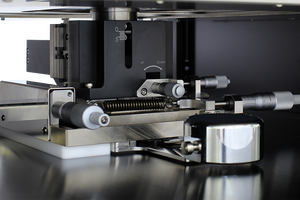

Air-Bearing Stage

The MPI unique air-bearing stage design, with simple single-handed puck control, provides unsurpassed convenience of operation for fast XY navigation and quick wafer loading without compromising accurate and fine positioning capability with the additional fine and accurate 25x25mm XY-Theta micrometer movement.

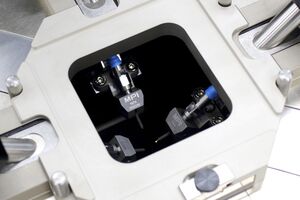

ShielDCap™

A fully configurable part of the MPI ShielDEnvironment™ which allows up to 4-port RF or up to 8-ports DC/Kelvin or a combination of those configurations.
Easy to reconfigure with convenient shielding that is MPI ShielDCap™ – a lot of little things which make the difference in simplifying day by day operations.
The complete ShielDCap™ is easily replaceable with the EMI-Shielded version of a probe card holder.
